Application Range

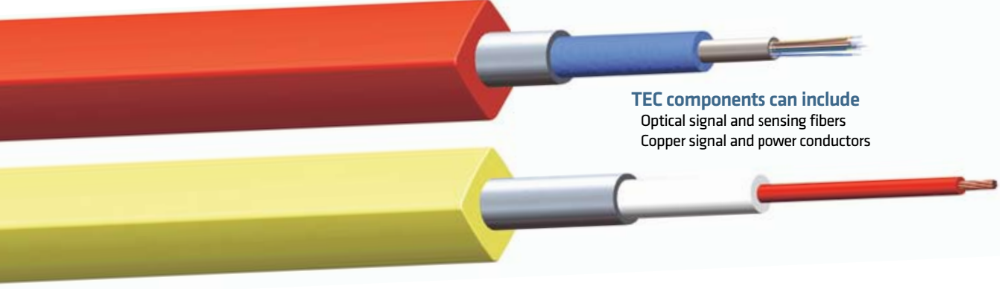

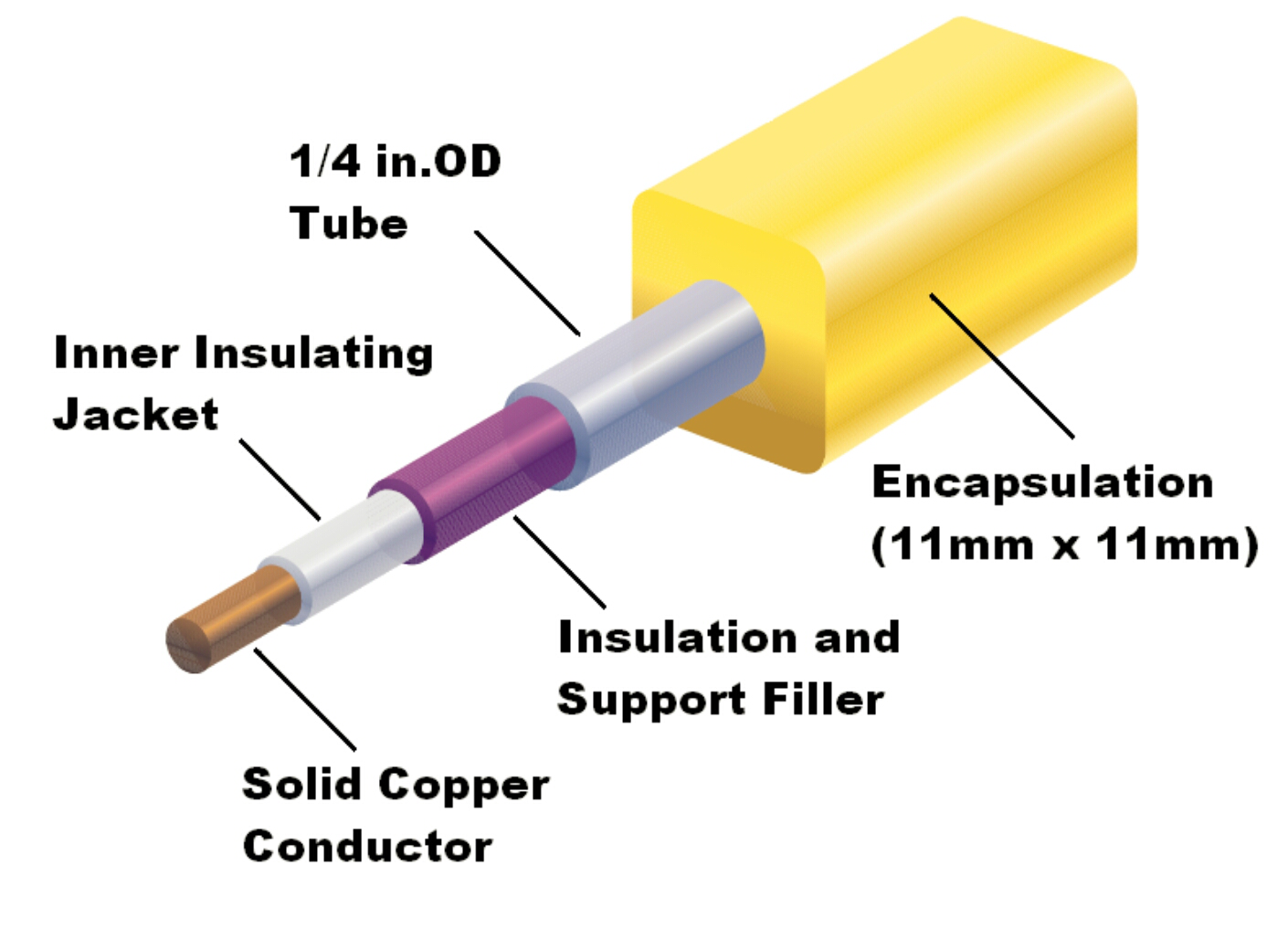

Tubing Encapsulated Cable (TEC) is suitable for facing the challenges of harsh environmental conditions associated with recovery of oil and gas through reservoir management.TEC uses welded stainless steel and nickel alloy tubing to protect electrical and optical components from the pressure and corrosive effects of the downhole environment. Polymeric encapsulation provides additional mechanical protection.

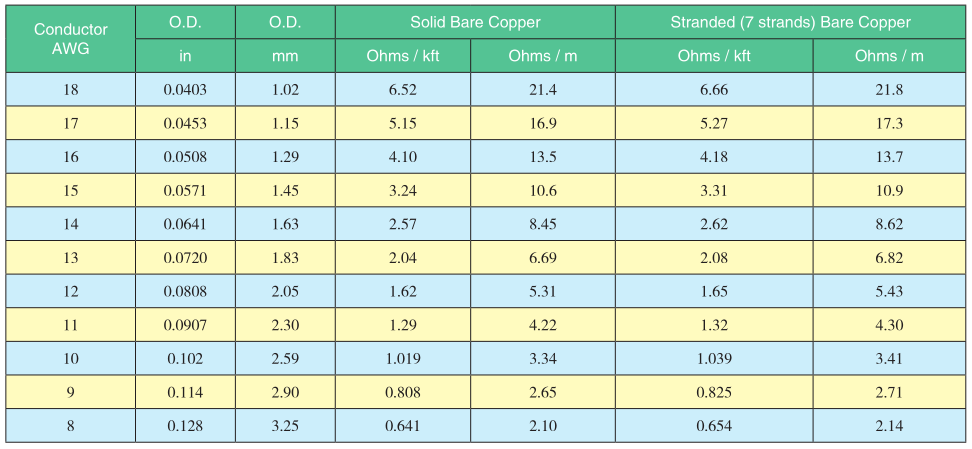

Maximum electrical Conductor resistance @ 68 °F(20°C)

Load-Carrying Submersible power cable	Electric submersible pump with Capillary Cable	Tubing Encapsulated Cable
Protector	Separator	Submersible Pump Structure
W4B-8.0 4-core 8.0mm PP insulation，outer shielding	W3B-5.6 3-core 5.6mm PP insulation，outer shielding
