A、Description:

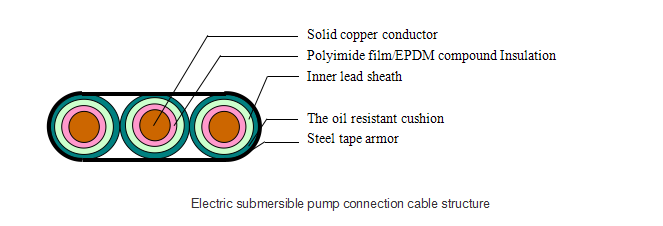

   Compound insulation with polyimide film and EPDM rubber,Inner lead sheath,Fluoropolymer tape and synthetic braid covered completely over the lead sheath,Full galvanized steel(or stainless steel or Monel) tape armor.

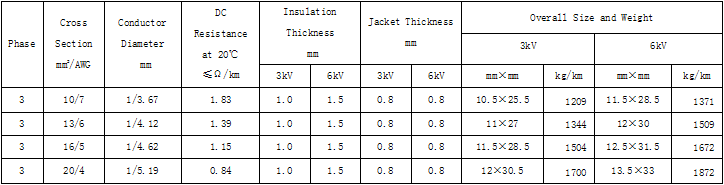

B、Specification and Parameters

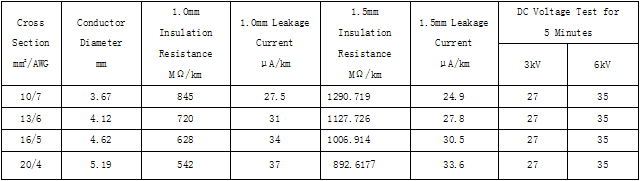

C、Index of Performance



Load-Carrying Submersible power cable	Electric submersible pump with Capillary Cable	Tubing Encapsulated Cable
Protector	Separator	Submersible Pump Structure
W4B-8.0 4-core 8.0mm PP insulation，outer shielding	W3B-5.6 3-core 5.6mm PP insulation，outer shielding
