A、Description

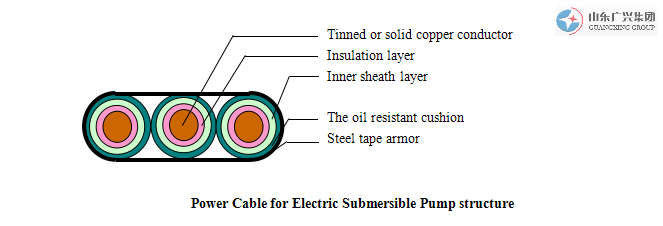

   Solid copper conductor,Compound insulation with polyimide film and fluoroplastics,Nitrile rubber jacket,Fluoropolymer tape or Polyester film and synthetic braid covered completely over the lead sheath,Full galvanized steel(or stainless or Monel) tape armor.

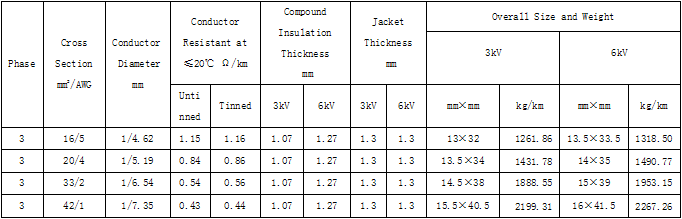

B、Specification and Parameters

C、Index of Performance



Load-Carrying Submersible power cable	Electric submersible pump with Capillary Cable	Tubing Encapsulated Cable
Protector	Separator	Submersible Pump Structure
W4B-8.0 4-core 8.0mm PP insulation，outer shielding	W3B-5.6 3-core 5.6mm PP insulation，outer shielding
