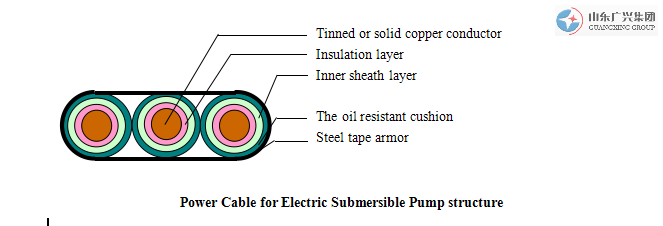

A、Description

   Tinned solid copper conductor,Polypropylene insulation,Compound jacket with Nitrile-PVC,Fluoropolymer tape or Polyester film and synthetic braid covered completely over the lead sheath,Full galvanized steel(or stainless or Monel) tape armor.

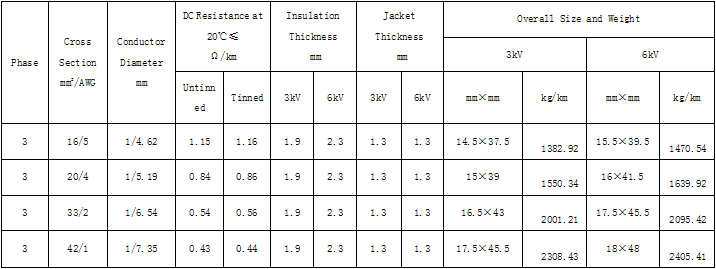

B、Specification and Parameters

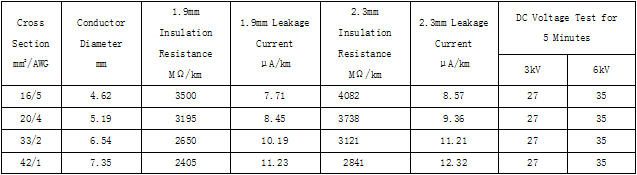

C、Index of Performance



Load-Carrying Submersible power cable	Electric submersible pump with Capillary Cable	Tubing Encapsulated Cable
Protector	Separator	Submersible Pump Structure
W4B-8.0 4-core 8.0mm PP insulation，outer shielding	W3B-5.6 3-core 5.6mm PP insulation，outer shielding
